Plugin Settings Panel

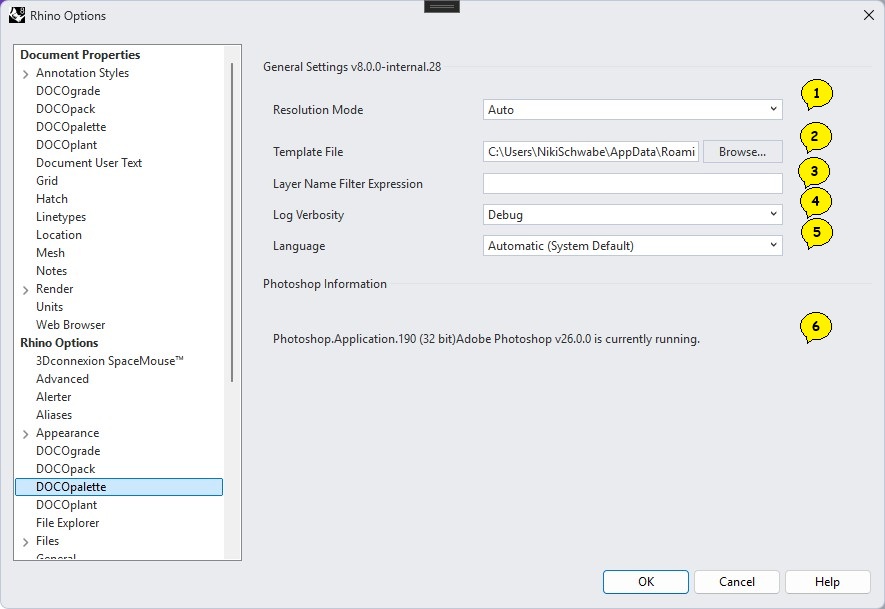

Panel Diagram
Access this panel from the Rhino command Options or from the Rhino menu File>Properties then navigate to Rhino Options>DOCOpalette.
Panel Controls
| Tag | Name | Description |
|---|---|---|
| 1 | Resolution Mode | Choose between Auto and Custom. Auto uses the DPI specified by the template, while Custom overrides it with a user-defined DPI value. |
| 2 | Template File | Specifies the path to the default Photoshop template. This template is used by default for new documents. |
| 3 | Layer Name Filter Expression | Optionally specify a filter expression to target layers by name. For example, *HATCH limits DOCOpalette layer exports to layers whose names end in HATCH. |
| 4 | Log Verbosity | Controls the level of detail recorded in the plugin logs. For normal operation, use Information to record essential information. If problems occur, switch to Debug for more detailed diagnostic output. Logs are saved in your local application data folder under DOCOlab/logs. |
| 5 | Language | Choose a preferred language or use the system culture. Supported languages are English, French, Spanish and German. |
| 6 | Photoshop Status | Displays the installed version or versions of Photoshop, if detected. |
