Document Properties Panel

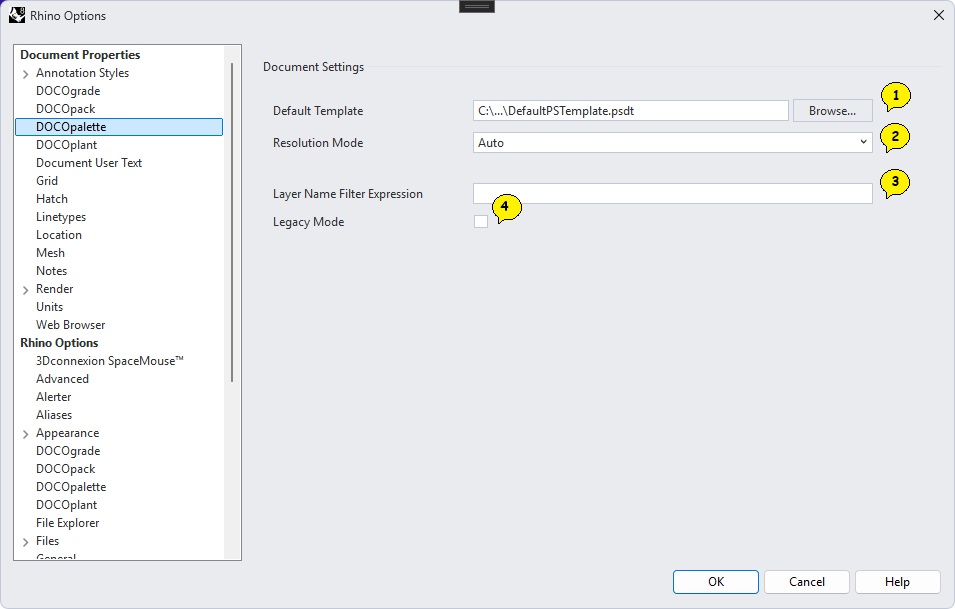

Panel Diagram
Access this panel from the Rhino command Options or from the Rhino menu File>Properties then navigate to Document Properties>DOCOpalette.
Preferences are saved with the document.
Panel Controls
| Tag | Name | Description |
|---|---|---|
| 1 | Default Template | Path to the default Photoshop template. This can be a location shared by multiple projects. By default this value is set from the Global plugin setting. |
| 2 | Resolution Mode | Choose from either Auto or Custom. Auto respects the DPI of the specified template while Custom overrides the default with a DPI value. |
| 3 | Working Folder Mode | Choose from either Auto or Custom. Auto generates the working DOCOpalette directory as a sub folder in the same directory as the Rhino file. Choose custom to specify any folder on the network. |
| 4 | Layer Name Filter Expression | Optionally specify a filter string to target particular files by name. For example, "*HATCH" will limit DOCOpalette layers listed in the Layer Visibility List on the Main Panel and layer exports to layer names ending in "HATCH". |
| 5 | Working Folder Suffix | This value is appended to the working folder specified. |
